Mid Drive Motor QS138 4KW V3 Mid-Drive QS Motor Kits with ND72530/ND84530/96530/ND72680/ND96680 Controller Display(with Nd96530)

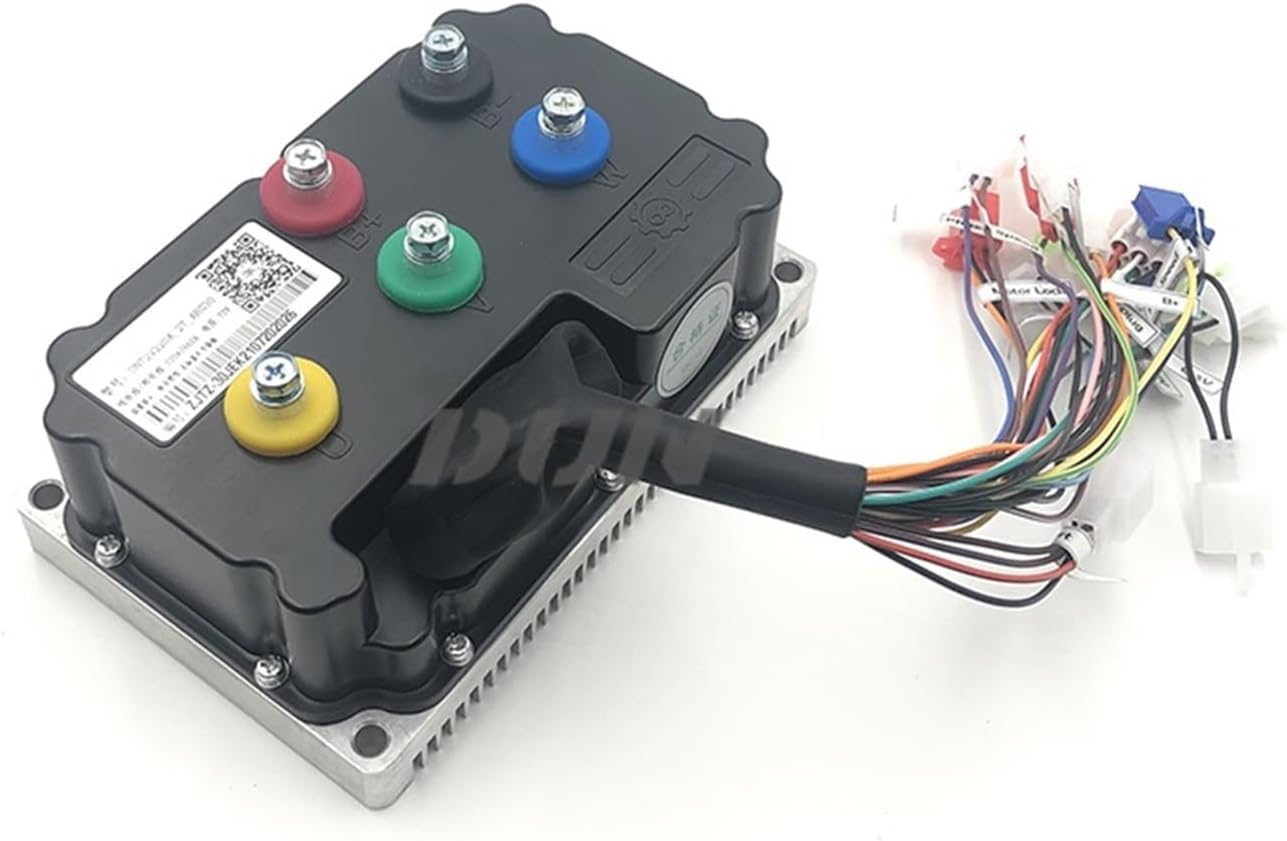

controllerQS138 90H 4000W V3 Mid-Drive Motor Kits With FarDriver ND72530/ND84530/ND96530/ND72680/ND96680 Controller DKD Display Multi-function ThrottleFor QS138 4000W V3 mid drive motor it could be used for electric light motorcycle dirtbike.E-motorcycle weight approx 130kg+2*80kgClimbing slope: 30°@208kgBattery: 72V50AhThis Link Contains1 pcs QS138 4KW V3 Mid-drive Motor1 pcs Fardriver ND72530 or ND84530 or ND96530 or ND72680 or ND96680 Controller 1 pcs DKD Display1 pcs Multi-function ThrottleMotor DescriptionMotor Type: PMSM Motor With Internal Reduction GearsRated Power: 4000W Max Continue 7500W (13.5KW peak in few seconds)Rated Voltage: 72VSpeed: 4800RPM (basic RPM) 7000RPM peak with flux weakeningTorque: Rated Torque 32N.m Max Torque 150N.mMagnet Height: 90mm 5 pole pairsMotor Gear Ratio: 1:2.35Max Efficiency: approx 93%Continuous Battery Current: 80A (72V)Peak Battery Current: 200A (72V)Working Temperature: 70-130 peak 150 Single Hall Set with waterproof connectorsWaterproof Grade: IP67Cooling: Air coolingThermic Probe: KTY83/122Phase wire: 16mm²Color: BlackN.W./G.W.: approx 14.5kg/15.5kgPackage Dimension: 31cm*31cm*31cmController SPECFardriver Controller1 Model: ND72530/84530/965302 Working Communication: Hall Sensor3 Available Motor Power: 4000W - 8000W4 Defaut Throttle Working Voltage: 0V - 5V5 Peak DC Current: 350A(72V) / 330A (84V-96V)6 Peak Phase Current: 530A7 Mosfets Detail: 30 FET8 Weight: 2.5kgs9 Instaliing Size: 189mm * 121mm * 65mm10 Controller Design: BLDC11 Case Material: Aluminum12 Support Programmable: PC & Phone13 Suitable for electric bike scooter motorcycle tricycle kart ATVDKD Display SPEC1 After power on the selftest of the display is completed then press and hold the left button for 10 seconds to ent

• controller
• High torque output: amplified torque through gear reduction suitable for steep slopes mountains and other complex terrain
• Modularized design: motor controller and sensor are highly integrated and the parts can be replaced separately during maintenance.
• Compatible with a wide range of vehicles: can match vehicles with different wheel diameters and tire types.
• High stability: The motor is located in the middle of the vehicle to improve driving stability especially suitable for high-speed riding or off-road scenarios.
• Wide applicability：It is suitable for DIY electric scooters electric bikes E-Motorcycle Moped etc.
